X-Lite X-803 RS Ultra Carbon Helmet - 68 Carbon

1 NERS -NOLAN EMERGENCY RELEASE SYSTEM1 P/J HOMOLOGATION

This system, patent pending, allows emergency teams to remove the cheek pads from the helmet while it is still being worn by the motorcyclist by simply pulling the red tapes attached to the front of the pads themselves.

2 ROTATIONAL IMPACT TESTS

In the Newton S.r.l. laboratory, the X-803 RS ULTRA CARBON has passed the rotational impact tests undergone by the competition helmets which are used in various races includin g the MotoGP and SBK. Newton S.r.l. is an independent testing laboratory which is recognized by the Italian Ministry of Transport for the approval of helmets and visors in accordance with regulation UN/ECE 22-05.

3 LATERAL VISIBILITY AND WEARABILITY

Compared to its predecessor (the X-802RR model), the X-803RS has been improved in terms of lateral visibility and wearability in the chin area. Consequently, it is able to offer increased level of statica and dynamic comfort and increased active safety.

4 DOUBLE ACTION

Device allowing the visor lock (to prevent accidental visor opening at high speeds) or visor demisting at low speeds or stops (by a minimum visor opening).

5 ADDITIONAL DARK GREEN VISOR

In addition to the Clear visor fitted as standard, the helmet is also provided with a Dark Green visor. This is exclusively for daytime racetrack riding in particular light conditions (for example very bright light). In these cases, it can reduce strain on the eyes in comparison to the Clear visor. Warning: the Dark Green visor’s light transmission values are below the minimum provided for by regulation ECE/ ONU 22-5 and therefore this visor is not approved.

6 PINLOCK® FOG-RESISTANT INNER VISOR

Pinlock® fog resistant inner visor (according to segment)

7 RACETRACK AERODYNAMIC SPOILER (RAS)

This is an aerodynamic spoiler developed in collaboration with the official Nolan and X-lite riders, and is the result of Computational Fluid Dynamics (CFD) studies and wind tunnel trials. The shape of its upper part reduces the aerodynamic resistance of the helmet and improves stability at high speeds in a head-down position, above all when providing a continuous line with the hump on the back of the rider’s suit (when present). Furthermore, the shape of the lateral parts improves helmet stability at high speeds in the air flow from the headlight fairing. It can be removed from the helmet according to the conditions of use and/or riding situations, for example in the presence of a passenger.

8 ADJUSTABLE STABILITY DEVICE (ASD)8 AIRBOOSTER TECHNOLOGY

When the RAS is removed from the helmet, the upper and side winglets provided in the box must be fitted. These winglets are part of the Adjustable Stability Device (ASD), an aerodynamic spoiler with adjustable profile. The ASD optimize the aerodynamic performance of the helmet when riding, improving it in terms of stability at high speeds, and assure the expulsion of hot air from inside the helmet. The profile can be adjusted in two configurations for the adaptation of the aerodynamics of the helmet according to various riding positions and styles.

9 “CARBON FITTING RACING EXPERIENCE” COMFORT INNER PADDING WITH INNOVATIVE NET CONSTRUCTION

The comfortable inner padding is made with active carbon filaments, a thermoregulatory, antistatic, and dissipative element. The liner, with innovative net construction, aids the movement of air around the upper part of the head which thus stays cool and dry. The inner padding is additionally made up of lateral cheek pads and lining straps which are all completely removable and washable.

10 LPC -LINER POSITIONING CONTROL (Patent Pending)

This system, patent pending, allows for the regulating of the position of the liner. This permits the positioning of the same.sized helmet to be adjusted for different heads, consequently adapting to various requirements and head shapes.

11 SINGLE-PIECE CHEEK PADS

The internal padding in expanded foam for the cheek pads has been designed in order to provide superior even pressure and consistent performance over time compared to traditional padding. It can also be removed from its fabric coverings in order to make washing of the latter easier.

10 BREATH DEFLECTOR and Wind Protector

- Breath deflector is available in two versions. One, fitted as standard, provides the product with a prestigious finish. The other, supplied in the box, is clearly inspired by rain masks used in racing and is therefore more suited to limiting fogging. - Wind protector

12 RETENTION SYSTEM

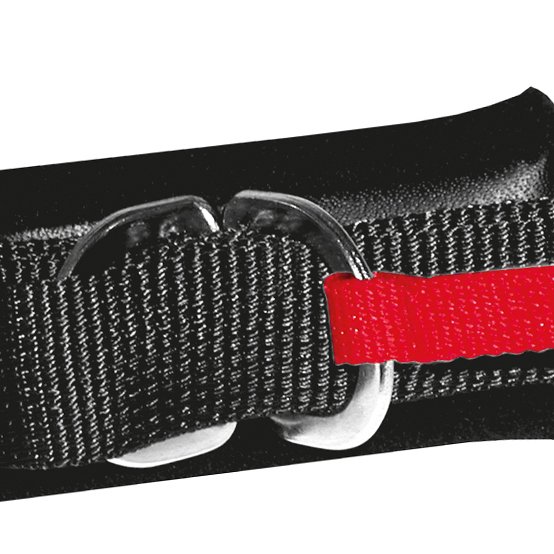

D-rings

RAF - Racing air Flow
